Testing that offers high throughput and low intrusiveness for user convenience.
This device is officially certified to Australian Standards, guaranteeing the high-precision accuracy and reliability required for both personal safety and workplace compliance.
WORKPLACE BREATHALYZERS
SHIELD Express Touch Workplace Breathalyzer
$1,049.97
This device is officially certified to Australian Standards, guaranteeing the high-precision accuracy and reliability required for both personal safety and workplace compliance.
Ideal Application: Efficient, Non-intrusive Testing
The SHIELD Touch represents the newest 2024 generation of New Zealand Workplace and Law Enforcement Breathalyzer. It combines both Passive and Active testing modes with advanced touchscreen technology to deliver unmatched speed and precision in testing. The SHIELD Identity variant facilitates photo identification to ensure the highest level of compliance.
Advantages
- Active & Passive Modes
- Latest New Zealand Technology
- AS3547:2019 + A2021 Certification
- Efficient Workplace Testing
-
Same Day Dispatch
-
1-3 Year Warranty
-
New Zealand Owned
-
New Zealand’s Industry Specialist
-
Law Enforcement Grade Electrochemical Fuel Cell
The platinum electrochemical sensor, designed for commercial applications, offers rapid clearing capabilities. It is employed by law enforcement agencies, emergency services, healthcare organizations, and in numerous high-risk and high-throughput settings.
-
Breath Testing Modes:
Active, Passive and Manual Override.
-
Sample System:
Manually or automatically take a deep lung sample.
-
Display Size:
LCD 2.4" TFT colour touch.
-
Testing Speed:
Unmatched through touchscreen technology.
-
Technology:
2024
-
Compliance:
AS3547:2019 + A1:2021
-
Warranty:
Complete 36-month warranty provided by the manufacturer.
-
Sensor Technology:
Electrochemical Fuel Cell. Law Enforcement Grade
-
Sensor Accuracy:
+/- 0.035 at 0.020 %BAC
-
Power Supply:
4 x AA Energizer batteries (included)
-
Battery Life:
Up to 3,000 tests
-
Alternate Power Supply:
12V Emergency Power Cord (included)
-
GPS:
+/- 5 metres
-
Dimensions:
18.5 x 5.3 x 3.6 cm
-
Weight:
269 grams (with mouthpiece and batteries included)
-
Detection Range:
0.000 – 0.450 %BAC
-
Operating Temperature:
-10°C to 50°C
-
Adjustable Units of Measure:
BAC: grm%, mg/mL, mg/100mL, or other units BrAC: mg/L, mcg/L, or other units
-
Connection:
Micro USB
-
1 x SHIELD Touch Breathalyzer
-
5 x Individually Wrapped Mouthpieces
-
1 x Sampling Cup
-
12 Volt Power Cord
-
1 x Micro USB Cable
-
1 x Rubber Embossed Blue Unit Cover
-
1 x Hard Carry Case With Handle

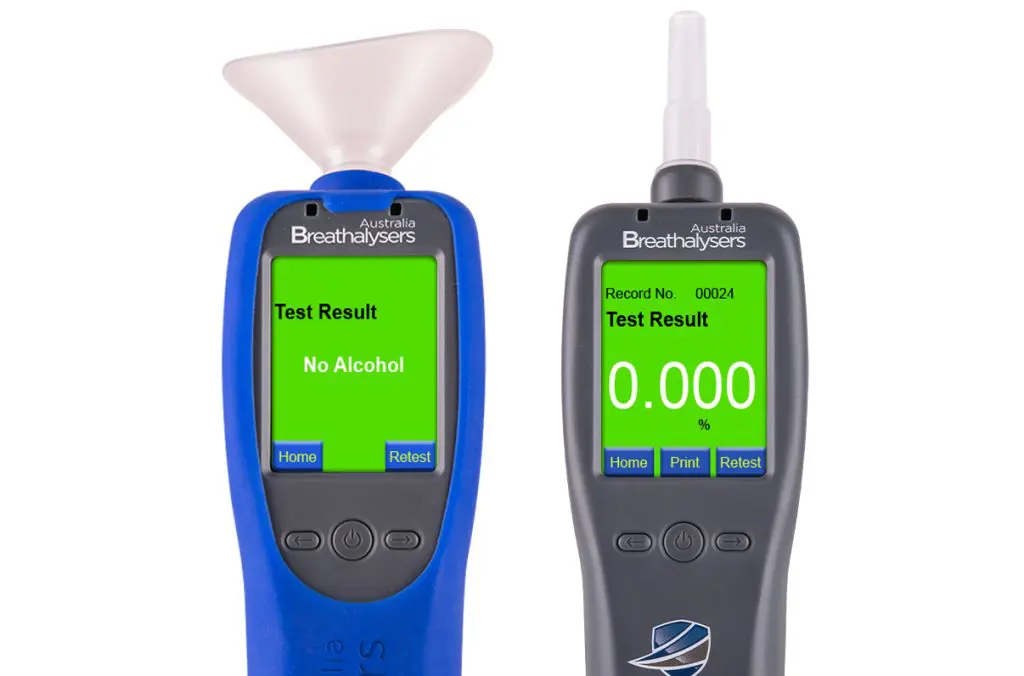

Passive & Active Modes Supported

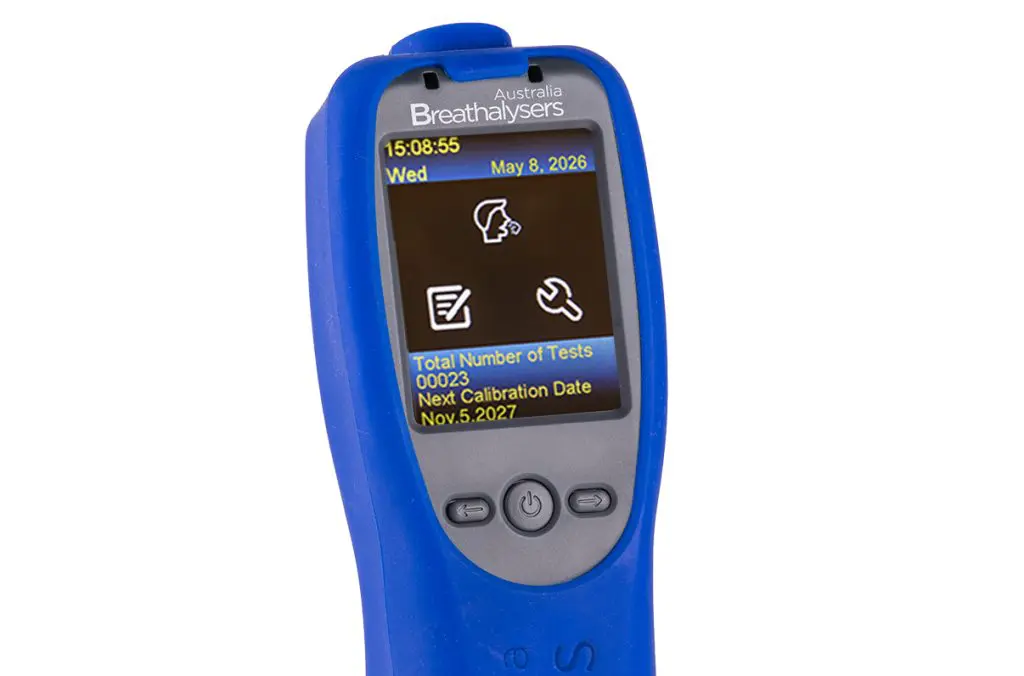

Colour Touchscreen Testing Speed
Unmatched breath testing speed, decreasing the average duration of each test by 40 seconds.
Reviews
A summary of what our valued customers think about the SHIELD Express Touch Workplace Breathalyzer
4.5
54 Reviews
97%
of respondents would recommend this to a friend
- 5 stars 40
- 4 stars 7
- 3 stars 3
- 2 stars 2
- 1 star 2
Frequently Asked Questions
We have 2 x shipping options:
• Uninsured: $12.97
• Insured: $14.97
Each of our breathalyzers comes with a warranty that varies between 12 and 36 months. To submit a warranty claim, please log in to your account.
All orders submitted prior to 9am each weekday will be shipped on the same day.
To help you choose the right product for your needs, please click on the blue “Help Me Choose” button located at the top of every webpage. Additionally, you may refer to our three detailed Buying Guides. They can be accessed here: Personal Breathalyzer, Workplace Breathalyzer, or Workplace Drug Test Kits.
Yes. Our breathalyzers are distributed through a wide range of retail networks and organizations that require testing across multiple locations. We are open to discussing bulk order purchases in more detail.
Additionally, we partner with smaller enterprises, including interlock installers who provide products to their customers. To make an inquiry, please click on this link. Contact Us.
Please review our Workplace Breath Testing Compliance Guide, which can be found at the following link: Workplace Breathalyser Compliance Guide.
Passive tests offer quick screening and do not necessitate a mouthpiece. The individual either speaks or exhales into a sampling cup located at the top of the breathalyser, ensuring no physical contact is made. These tests reveal the presence or absence of alcohol and are less invasive. Should this screening test indicate alcohol, an active test is usually performed.
An active test requires a mouthpiece to be affixed to the device, allowing for a precise measurement of Blood Alcohol Concentration (BAC).
Devices like the SHIELD breathalysers can perform both types of tests and retain the data within the unit’s memory.
Any organization seeking to maximise employee performance and address the risks associated with drug and alcohol use must implement clear policies. This is particularly vital in sectors where safety is paramount. Employers have a responsibility to foster a safe workplace and may develop policies to support this obligation. A clearly articulated policy helps ensure consistency across the organization and reduces the likelihood of legal consequences.
The SHIELD has been certified to uphold its accuracy for a period of up to 18 months without the need for recalibration. The recalibration pricing is detailed as follows:
• 6 months – $120 + GST Standard
• 12 months – $210 + GST Standard
• 18 months – $295 + GST Standard
The above prices cover pick-up and return courier services, recalibration, airway servicing, and the Certification of Accuracy for non-rural areas only.
For rural areas, please contact us for pricing.
You might also be interested in
SHIELD Express Touch Workplace Breathalyzer
The SHIELD Express Touch breathalyzer is designed to assist organisations promoting safer workplaces while optimising alcohol screening initiatives. Designed for rigorous commercial settings, these devices integrate cutting-edge touchscreen capabilities with accurate fuel cell technology, rendering them ideal for regular testing in sectors such as transport, mining, construction, logistics, and other industries where safety is critical.
Organisations in search of SHIELD Express Touch breathalyzers in New Zealand can take advantage of a solution tailored specifically to meet local compliance standards and accommodate high-volume testing scenarios. The user-friendly interface reduces the need for extensive training and facilitates efficient operation by supervisors, safety officers, and authorised testing staff.
The SHIELD Express Touch breathalyzer for workplace use ensures consistent performance in settings where reliability, durability, and user-friendliness are crucial. Its contemporary design and features focused on workplace needs make it a compelling option for companies aiming to enhance their alcohol management strategies while reinforcing ongoing safety and compliance goals.
